Description

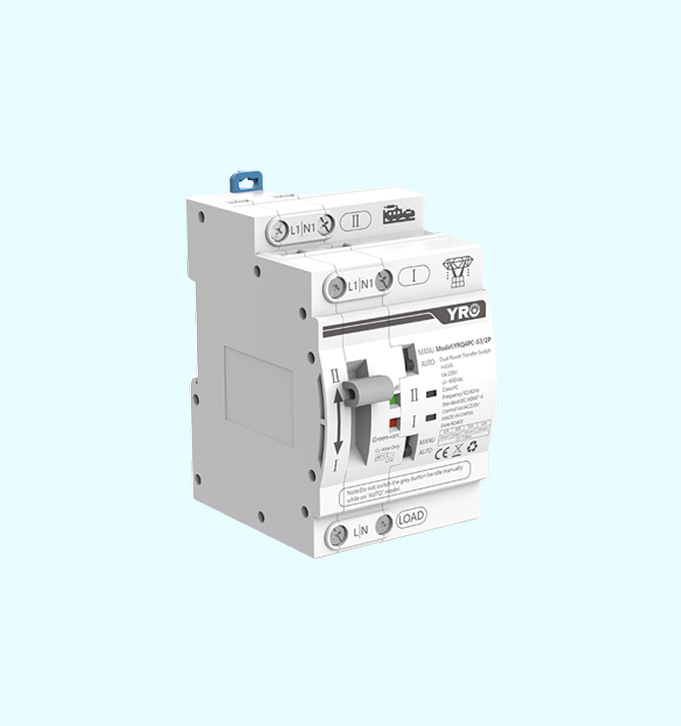

Dual Power Automatic Transfer Switch – 2 Pole, 63A (YRO YRQ4PC-63/2P) | PC Class ATS

Ensure uninterrupted power to your home or business with the YRO YRQ4PC-63/2P Dual Power Automatic Transfer Switch — a PC-class (Power Circuit) ATS engineered for fast, reliable and fully automatic switching between two single-phase power sources such as mains and solar inverter, or mains and generator. Compliant with IEC 60947-6 and CE certified, this unit is purpose-built for DIN-rail distribution boxes in residential and light commercial installations.

The YRQ4PC-63/2P features two clearly labelled input terminals (L1N1 Source 1 / L1N1 Source 2) and a dedicated load output (L+N), with a robust sliding handle mechanism that supports both AUTO (fully automatic) and MANU (manual override) switching modes. In AUTO mode, the device continuously monitors both power sources and instantly transfers the load to the available source the moment a failure is detected — with no user intervention required. The built-in dual LED indicator (Green = Source 1 active / Red = Source 2 active) gives a clear, at-a-glance status of which power source is currently supplying the load.
